Earthing Solution

Earthing, also known as grounding, is a crucial safety measure in electrical systems. It involves connecting electrical equipment and installations to the Earth's conductive surface, providing a path for fault currents to flow safely to the ground. This prevents dangerous voltage buildup and protects people from electric shock and equipment from damage.

In simpler terms:

  • Safety First:
    Earthing protects you from electrical shock by providing a safe path for fault current to flow to the ground.
  • Fault Current Path:
    When a fault occurs, earthing ensures that the fault current bypasses the person and flows safely to the earth, preventing injury.
  • Protection for Equipment:
    Earthing can also protect electrical appliances from damage by providing a path for fault currents to dissipate.

Here's how it works:

  •  Connection:

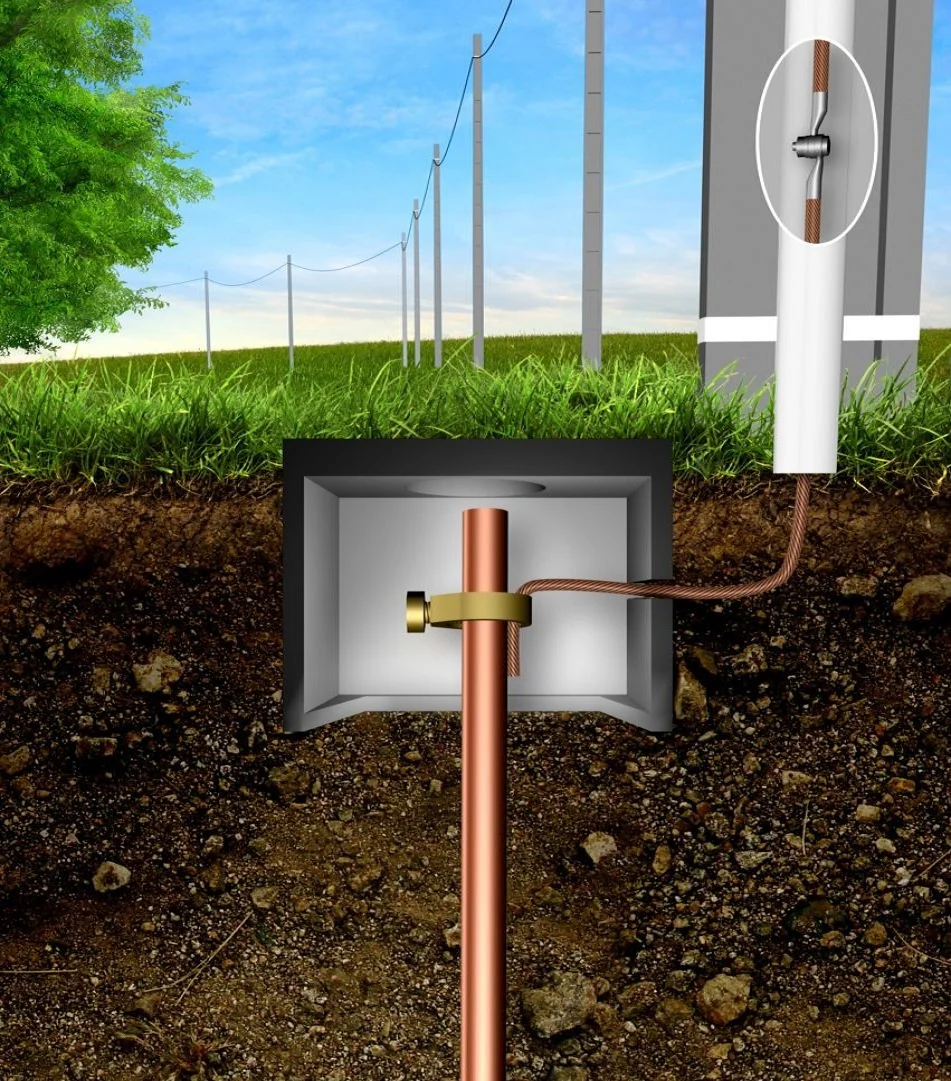

    Electrical equipment is connected to a grounding rod or plate buried in the ground.
  • Fault Current Path:
    When a fault occurs (e.g., insulation breaks down), the fault current flows through the earthing wire to the ground.
  • Protective Device:
    The protective device (e.g., circuit breaker) detects the fault current and switches off the power supply, preventing damage.
